The tidyHeatmap package

Stefano Mangiola 2025-01-26

tidyHeatmap is a package that introduces tidy principles to the creation of information-rich heatmaps. This package uses ComplexHeatmap as graphical engine.

Citation

Mangiola et al., (2020). tidyHeatmap: an R package for modular heatmap production based on tidy principles. Journal of Open Source Software, 5(52), 2472, https://doi.org/10.21105/joss.02472

Full documentation here

# Create some more data points
pasilla_plus <-
    tidyHeatmap::pasilla |>
    dplyr::mutate(activation_2 = activation, activation_3 = activation) |>
    tidyr::nest(data = -sample) |>
    dplyr::mutate(size = rnorm(n(), 4,0.5)) |>
    dplyr::mutate(age = runif(n(), 50, 200)) |>
    tidyr::unnest(data)

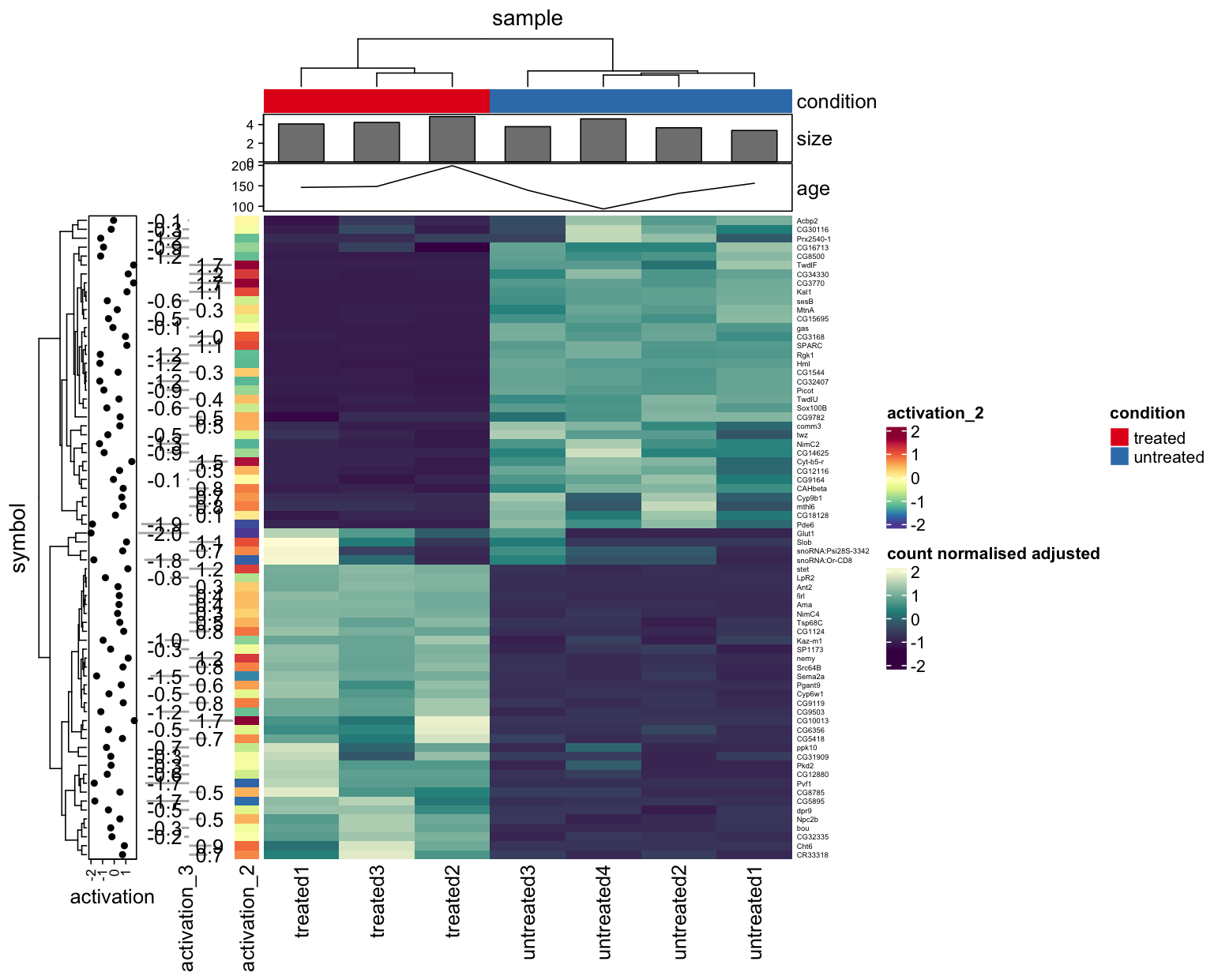

# Plot
pasilla_plus |>
    heatmap(
        .column = sample,
        .row = symbol,
        .value = `count normalised adjusted`,
        scale = "row"
    ) |>
    annotation_group(location) |>
    annotation_tile(condition, show_legend = FALSE) |>
    annotation_point(activation) |>
    annotation_numeric(activation_3) |>
    annotation_tile(activation_2) |>
    annotation_bar(size) |>
    annotation_line(age)

Advantages:

Modular annotation with just specifying column names
Custom grouping of rows/columns is easy to specify with annotation_group, e.g. heatmap(...) |> annotation_group(...)
Labels size adjusted by row and column total number
Default use of Brewer and Viridis palettes

Retrieve heatmap data and dendrograms

After creating a heatmap, you can extract the matrix and dendrograms exactly as they appear in the plot:

# Create heatmap
hm <- tidyHeatmap::N52 |>
  tidyHeatmap::heatmap(
    .row = symbol_ct,
    .column = UBR,
    .value = `read count normalised log`
  )

# Extract heatmap data as plotted
result <- hm |> get_heatmap_data()
ordered_matrix <- result$matrix        # Matrix with rows/columns in heatmap order
row_dendrogram <- result$row_dend      # Row dendrogram object
column_dendrogram <- result$column_dend # Column dendrogram object

# All have consistent row and column names
print(rownames(ordered_matrix))
print(labels(row_dendrogram))

Functions/utilities available

Function	Description
`heatmap`	Plots base heatmap
`annotation_group`	Adds group annotation strips and grouping to the heatmap
`annotation_tile`	Adds tile annotation to the heatmap
`annotation_point`	Adds point annotation to the heatmap
`annotation_bar`	Adds bar annotation to the heatmap
`annotation_numeric`	Adds bar + number annotation to the heatmap
`annotation_line`	Adds line annotation to the heatmap
`layer_text`	Add layer of text on top of the heatmap
`layer_point`	Adds layer of symbols on top of the heatmap
`layer_square`	Adds layer of symbols on top of the heatmap
`layer_diamond`	Adds layer of symbols on top of the heatmap
`layer_arrow_up`	Adds layer of symbols on top of the heatmap
`layer_arrow_down`	Add layer of symbols on top of the heatmap
`layer_star`	Add layer of symbols on top of the heatmap
`layer_asterisk`	Add layer of symbols on top of the heatmap
`split_rows`	Splits the rows based on the dendogram
`split_columns`	Splits the columns based on the dendogram
`get_heatmap_data`	Retrieves matrix and dendrograms exactly as plotted
`save_pdf`	Saves the PDF of the heatmap
`+`	Integrate heatmaps side-by-side
`as_ComplexHeatmap`	Convert the tidyHeatmap output to ComplexHeatmap for non-standard “drawing”
`wrap_heatmap`	Allows the integration with the `patchwork` package

Installation

To install the most up-to-date version

devtools::install_github("stemangiola/tidyHeatmap")

To install the most stable version (however please keep in mind that this package is under a maturing lifecycle stage)

install.packages("tidyHeatmap")

Contribution

If you want to contribute to the software, report issues or problems with the software or seek support please open an issue here
